The 4.3-inch high brightness LCD capacitive with High precision, high stability simulation data

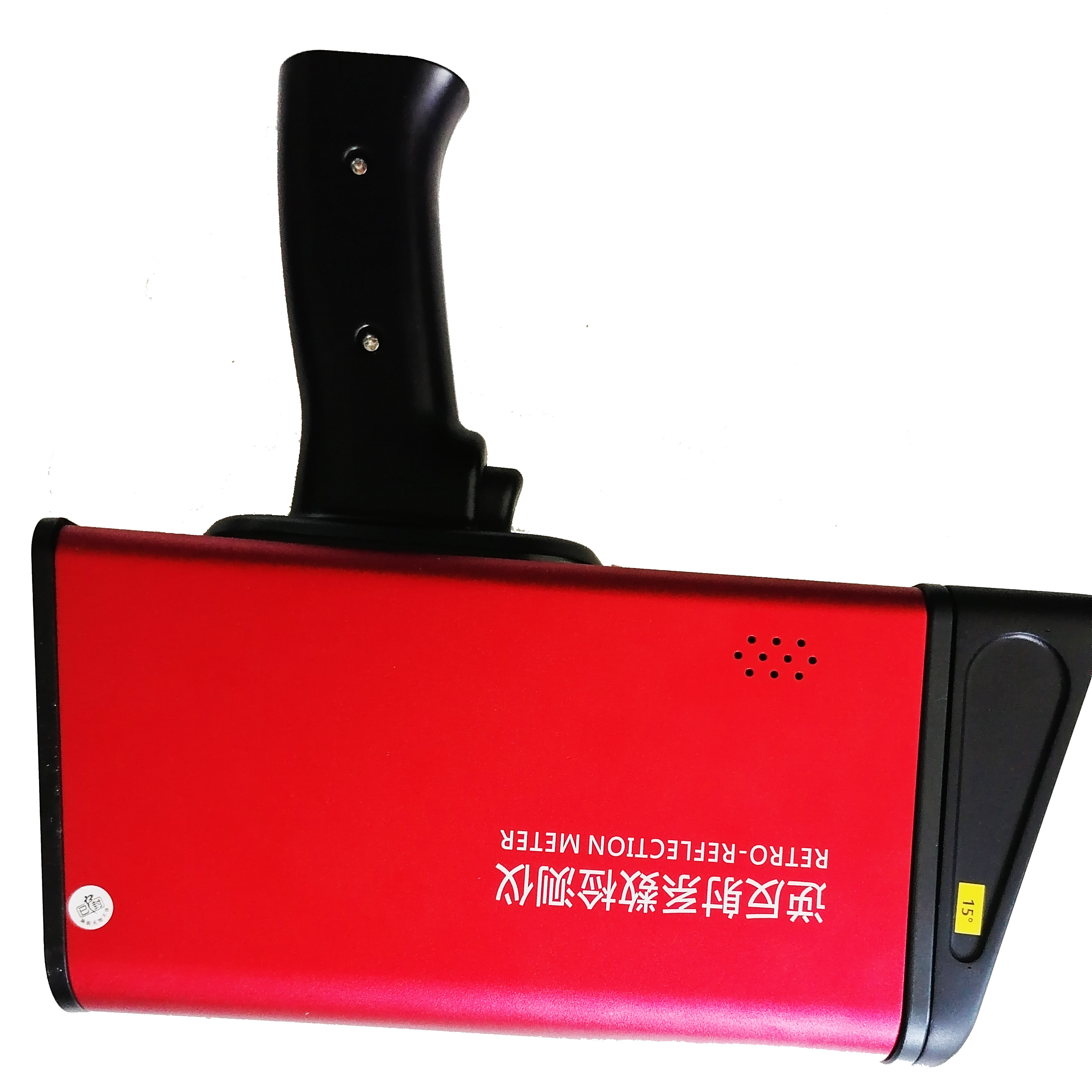

Multi Angle Retroreflectometer is a portable on-site measuring instrument, used for the determination of night visibility of traffic signs and safety garments.
Designed with high precision and high stability structure, The Multi Angle retroreflectometer applies high-standard MCU master module, large-capacity storage unit, touch screen display with handwriting input function and embedded program control software, supports for rapid inspection . It is featured by free preheating, small measurement error, out-of-the-box and so on. This is a necessary instrument for the production, quality supervision, engineering construction, supervision and other units to measure the retroreflection performance of reflective sign.
The retroreflective coefficient detector is an instrument used to measure the retroreflective coefficient of reflective materials on the truck, road traffic signs at all levels, and reflective strips of various signs clothing. It can also be used for reflective sticker manufacturers to detect and control product quality, and for quality supervision departments to detect reflective material.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2°,0.5°,1° |
| Angle of incidence | -4°,5°,15°,30° |
| Error of repeatability measurement | ≤2% |
| Error of reproducibility measurement | ≤3% |
| Charger | DC 8.4V |
| Ambient humidity | ＜98%, no frost |
Packing list
| Serial number | Name Specification | Number |
| 01 | Multi Angle Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Touch pen | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
